Termux proot mesa freedreno kgsl 빌드하기

ㅋㅋ잠자 2024. 8. 21. 02:10

안녕하세요? 아래 깃을 보고 proot 에서 사용할 수 있는 mesa를 빌드해보겠습니다.

https://github.com/xMeM/termux-packages/actions/runs/10418112154

일단 패치내용이 정식 mesa 에는 머지되지 않은게 있음으로 수동으로 패치를 머지해야합니다.

일단 이전글을 보고 오시면 컴파일하기 수월합니다.

https://blog.djjproject.com/830

1. mesa download

root@localhost:~# mkdir -p mesa
root@localhost:~/mesa# wget https://archive.mesa3d.org/mesa-24.2.0.tar.xz
root@localhost:~/mesa# tar xf mesa-24.2.0.tar.xz

2. termux 소스 다운로드

root@localhost:~# git clone https://github.com/xMeM/termux-packages.git -b dev/mesa --single-branch

그리고 아래 패치들을 확인합니다.

root@localhost:~/termux-packages/packages/mesa# ls
0001-disable-multithreading-for-llvmpipe.patch
0002-fix-detect-os.patch
0003-fix-for-anon-file.patch
0004-do-not-check-xlocale.patch
0005-virgl-socket-path.patch
0006-wsi-no-pthread_cancel.patch
0007-use-mtx_t-operations-in-turnip.patch
0008-workaround-fortify-check.patch
0009-disable-resource_create_front-for-vtest.patch
0010-zink-fixes.patch
0011-freedreno-drm-kgsl-Add-KGSL-backend-for-freedreno.patch
0012-freedreno-drm-Add-more-APIs-to-per-backend-API.patch
0013-fix-bad-syscall.patch
0014-freedreno-HACK-GL_ARB_timer_query.patch
0015-termux-x11-kgsl.patch
build.sh
cmake-wrapper.in
mesa-dev.subpackage.sh
mesa-vulkan-icd-freedreno.subpackage.sh
mesa-vulkan-icd-swrast.subpackage.sh
osmesa.subpackage.sh

여기서 0008 번은 proot 환경에서 컴파일 할 때 에러가 발생합니다.

그래서 8번은 빼고 적용해야합니다.

3. mesa 소스 패치 적용

root@localhost:~/termux-packages/packages/mesa# cd ~/mesa/mesa-24.2.0/

아래 순서대로 적용합니다.

patch -p1 < ../../termux-packages/packages/mesa/0001-disable-multithreading-for-llvmpipe.patch
patch -p1 < ../../termux-packages/packages/mesa/0002-fix-detect-os.patch
patch -p1 < ../../termux-packages/packages/mesa/0003-fix-for-anon-file.patch
patch -p1 < ../../termux-packages/packages/mesa/0004-do-not-check-xlocale.patch
patch -p1 < ../../termux-packages/packages/mesa/0005-virgl-socket-path.patch
patch -p1 < ../../termux-packages/packages/mesa/0006-wsi-no-pthread_cancel.patch
patch -p1 < ../../termux-packages/packages/mesa/0007-use-mtx_t-operations-in-turnip.patch
patch -p1 < ../../termux-packages/packages/mesa/0008-workaround-fortify-check.patch
patch -p1 < ../../termux-packages/packages/mesa/0009-disable-resource_create_front-for-vtest.patch
patch -p1 < ../../termux-packages/packages/mesa/0010-zink-fixes.patch
patch -p1 < ../../termux-packages/packages/mesa/0011-freedreno-drm-kgsl-Add-KGSL-backend-for-freedreno.patch
patch -p1 < ../../termux-packages/packages/mesa/0012-freedreno-drm-Add-more-APIs-to-per-backend-API.patch
patch -p1 < ../../termux-packages/packages/mesa/0013-fix-bad-syscall.patch
patch -p1 < ../../termux-packages/packages/mesa/0014-freedreno-HACK-GL_ARB_timer_query.patch
patch -p1 < ../../termux-packages/packages/mesa/0015-termux-x11-kgsl.patch

그리고 아래 패키지 설정을 합니다.

root@localhost:~/mesa/mesa-24.2.0# meson build -Dgbm=enabled -Dopengl=true -Degl=enabled -Degl-native-platform=x11 -Dgles1=disabled -Dgles2=enabled -Ddri3=enabled -Dglx=dri -Dllvm=enabled -Dshared-llvm=disabled -Dplatforms=x11,wayland -Dgallium-drivers=swrast,virgl,zink,freedreno -Dvulkan-drivers=swrast,freedreno -Dfreedreno-kmds=msm,kgsl -Dosmesa=true -Dglvnd=true -Dxmlconfig=disabled --reconfigure --prefix=/usr --libdir=/usr/lib/aarch64-linux-gnu

특히 컴파일 옵션에 freedreno-kmds=msm,kgsl 그리고 vulkan-drivers=freedreno 부분이 중요합니다.

중간에 vulkan-drivers 옵션에서 swrast intel <--- intel 이 선언되어 있으면 컴파일 에러가 발생하니 주의하세요.

최종 컴파일 옵션입니다.

libarchive 3.7.2

    regex support: glibc

mesa 24.2.0

  Directories
    prefix                       : /usr
    libdir                       : lib/aarch64-linux-gnu
    includedir                   : include

  Common C and C++ arguments
    c_cpp_args                   : -mtls-dialect=desc

  OpenGL
    OpenGL                       : YES
    ES1                          : NO
    ES2                          : YES
    Shared glapi                 : YES
    GLVND                        : YES

  DRI
    Platform                     : drm
    Driver dir                   : /usr/lib/aarch64-linux-gnu/dri

  GLX
    Enabled                      : YES
    Provider                     : dri

  EGL
    Enabled                      : YES
    Drivers                      : builtin:egl_dri2 builtin:egl_dri3
    Platforms                    : x11 wayland surfaceless drm xcb

  GBM
    Enabled                      : YES
    Backends path                : /usr/lib/aarch64-linux-gnu/gbm

  Vulkan
    Drivers                      : swrast freedreno
    Platforms                    : x11 wayland surfaceless drm xcb
    ICD dir                      : share/vulkan/icd.d
    Intel Ray tracing            : NO

  Video
    Codecs                       : av1dec av1enc vp9dec
    APIs                         : vdpau va vulkan xa

  LLVM
    Enabled                      : YES
    Version                      : 15.0.6

  Gallium
    Enabled                      : YES
    Drivers                      : swrast virgl zink freedreno
    Platforms                    : x11 wayland surfaceless drm xcb
    Frontends                    : mesa xa vdpau va
    Off-screen rendering (OSMesa): libOSMesa
    HUD lm-sensors               : YES

  Perfetto
    Enabled                      : NO

  Teflon (TensorFlow Lite delegate)
    Enabled                      : NO

  Subprojects
    libarchive                   : YES
    lua                          : YES

  User defined options
    libdir                       : /usr/lib/aarch64-linux-gnu
    prefix                       : /usr
    dri3                         : enabled
    egl                          : enabled
    egl-native-platform          : x11
    freedreno-kmds               : msm,kgsl
    gallium-drivers              : swrast,virgl,zink,freedreno
    gbm                          : enabled
    gles1                        : disabled
    gles2                        : enabled
    glvnd                        : true
    glx                          : dri
    llvm                         : enabled
    opengl                       : true
    osmesa                       : true
    platforms                    : x11,wayland
    shared-llvm                  : disabled
    vulkan-drivers               : swrast,freedreno
    xmlconfig                    : disabled

아래 명령으로 컴파일하고 설치합니다.

root@localhost:~/mesa/mesa-24.2.0# ninja -C build install

4. freedreno kgsl 드라이버 적용

termux 에서 proot 환경을 실행하는데 아래와 같이 수정합니다.

#!/bin/sh

rm -rf ${TMPDIR}/*
pkill -9 -ef "pulseaudio"
pkill -9 -ef "termux.x11.Loader"

# Termux-X11 start
am start --user 0 -n com.termux.x11/com.termux.x11.MainActivity

XDG_RUNTIME_DIR=${TMPDIR} termux-x11 :0 -ac -extension MIT-SHM &
sleep 1

pulseaudio --load="module-native-protocol-tcp auth-ip-acl=127.0.0.1 auth-anonymous=1" --exit-idle-time=-1 &
sleep 1

touch ~/bind
proot-distro login debian --shared-tmp --no-sysvipc -- bash -c "rm -rf /root/.cache"
proot-distro login debian --bind ~/bind:/proc/bus/pci/devices --shared-tmp --no-sysvipc -- bash -c "export DISPLAY=:0; export PULSE_SERVER=tcp:127.0.0.1:4713; MESA_LOADER_DRIVER_OVERRIDE=kgsl dbus-launch --exit-with-session xfce4-session"

MESA_LOADER_DRIVER_OVERRIDE 를 kgsl 로 설정합니다.

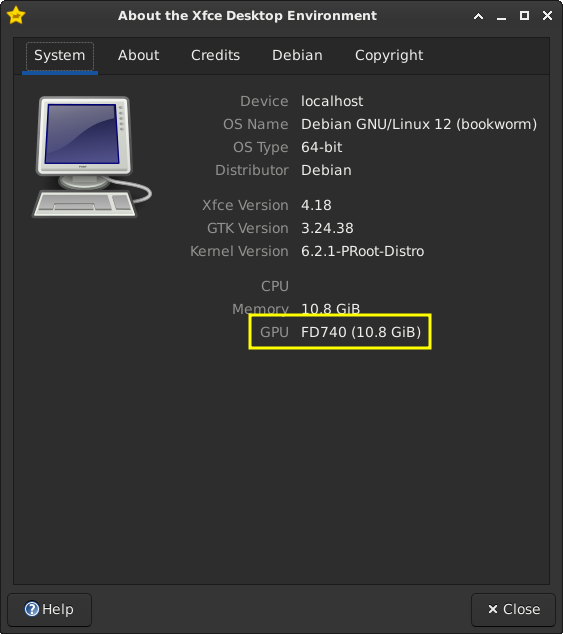

환경을 다시 시작하면 turnip 로 표시되던 환경이 아래와 같이 FD740으로 표시됩니다.

glxinfo -B 는 실행에 실패하네요.

root@localhost:~# glxinfo -B
name of display: :0.0
X Error of failed request:  135
  Major opcode of failed request:  133 ()
  Minor opcode of failed request:  15
  Value in failed request:  0x0
  Serial number of failed request:  37
  Current serial number in output stream:  39

5. 벤치마킹

1) 이전 glxmark (turnip / zink)

root@localhost:~# glmark2
=======================================================
    glmark2 2023.01
=======================================================
    OpenGL Information
    GL_VENDOR:      Mesa
    GL_RENDERER:    zink Vulkan 1.3(Turnip Adreno (TM) 740 (MESA_TURNIP))
    GL_VERSION:     4.6 (Compatibility Profile) Mesa 24.2.0-devel (git-93f790b04a)
    Surface Config: buf=32 r=8 g=8 b=8 a=8 depth=24 stencil=0 samples=0
    Surface Size:   800x600 windowed
=======================================================
[build] use-vbo=false: FPS: 416 FrameTime: 2.406 ms
[build] use-vbo=true: FPS: 512 FrameTime: 1.956 ms
[texture] texture-filter=nearest: FPS: 516 FrameTime: 1.940 ms
[texture] texture-filter=linear: FPS: 496 FrameTime: 2.020 ms
[texture] texture-filter=mipmap: FPS: 501 FrameTime: 1.998 ms

2) freedreno kgsl

oot@localhost:~# glmark2
=======================================================
    glmark2 2023.01
=======================================================
    OpenGL Information
    GL_VENDOR:      freedreno
    GL_RENDERER:    FD740
    GL_VERSION:     4.6 (Compatibility Profile) Mesa 24.2.0
    Surface Config: buf=32 r=8 g=8 b=8 a=8 depth=24 stencil=0 samples=0
    Surface Size:   800x600 windowed
=======================================================
[build] use-vbo=false: FPS: 1244 FrameTime: 0.804 ms
[build] use-vbo=true: FPS: 1368 FrameTime: 0.731 ms
[texture] texture-filter=nearest: FPS: 1331 FrameTime: 0.752 ms
[texture] texture-filter=linear: FPS: 1305 FrameTime: 0.767 ms
[texture] texture-filter=mipmap: FPS: 1610 FrameTime: 0.621 ms

이야.. ㄷㄷㄷ

프레임이 너무 잘나옵니다.... ㄷㄷㄷ

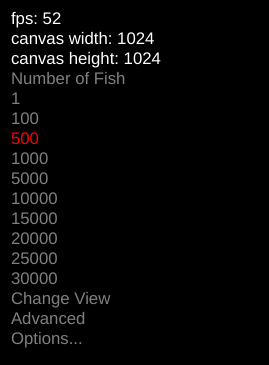

3) web aquarium

대략 50프레임이 나오네요. 이전에는 이게 .. 42프레임 정도로 측정되었습니다.

6. 이전글

Termux 한글 입력 설정하기

https://blog.djjproject.com/829

Termux proot mesa 빌드하기 (kgsl / dri3 / zink / turnip)

https://blog.djjproject.com/830

Termux proot 크롬브라우저 그림판 스크린샷 스티커메모 어플리케이션

https://blog.djjproject.com/831

7. 번외 / ksgl 장치가 실제로 활용 중?

root@localhost:~# lsof /dev/kgsl-3d0

COMMAND     PID USER   FD   TYPE DEVICE SIZE/OFF NODE NAME
main       8383 root  mem    CHR  474,0          1356 /dev/kgsl-3d0
main       8383 root   63u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfce4-ses  8998 root    4u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfce4-ses  8998 root    5u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfce4-ses  8998 root    6u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfwm4      9053 root   11u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfwm4      9053 root   12u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
xfwm4      9053 root   13u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
thorium   11190 root   18u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
thorium   11190 root   19u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
thorium   11190 root   20u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
kolourpai 18614 root   13u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
kolourpai 18614 root   14u   CHR  474,0      0t0 1356 /dev/kgsl-3d0
kolourpai 18614 root   15u   CHR  474,0      0t0 1356 /dev/kgsl-3d0

사용중입니다.
